고전압 부품

Home 고전압 부품 > 고전압 캐패시터 > HV Ceramic Capacitors

Radial Leaded Capacitors 상위메뉴

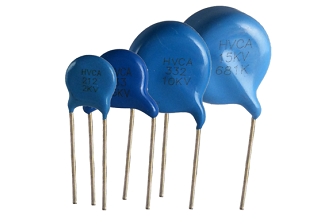

CK1 Series - Radial Leaded Capacitors
3 kV to 6 kV, 2 to 300 pF, Class I



PDF 다운로드
NY2 Series - Radial Leaded Capacitors
3 kV to 15 kV, 100 to 5600 pF, Class II



PDF 다운로드
NY3 Series - Radial Leaded Capacitors
- 10 kV to 20 kV, 220 to 6800 pF, Class II



TY1 Series - Radial Leaded Capacitors
- 3 to 20kV, 10 to 220pF, Class I



PDF 다운로드
TY2 Series - Radial Leaded Capacitors
- 3 to 20kV, 100 to 10000pF, Class II



PDF 다운로드
TY4 Series - Radial Leaded Capacitors
- 3 to 20kV, 100 to 10000pF, Class II



PDF 다운로드

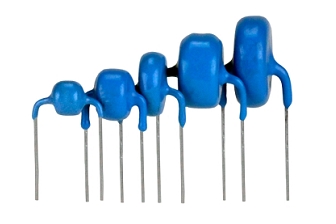

Dipped Radial Capacitors NP0 (50V - 100V) - NP0 Dipped
- 50V to 100V, 1pF to 150nF
- Operating Temperature : - 55°C, + 125°C
- Temperature Coefficient : ± 15% with 0Vdc applied

PDF 다운로드
Dipped Radial Capacitors NP0 (200V - 500V) - NP0 Dipped
- 200V to 500V, 1pF to 12nF
- Operating Temperature : - 55°C, + 125°C
- Temperature Coefficient : ± 15% with 0Vdc applied

PDF 다운로드
Dipped Radial Capacitors X7R (25V - 100V) - X7R Dipped
- 25V to 100V, 100pF to 2.2uF
- Operating Temperature : - 55°C, + 125°C
- Temperature Coefficient : ± 15% with 0Vdc applied

PDF 다운로드
Dipped Radial Capacitors X7R (200V - 500V) - X7R Dipped
- 200V to 500V, 100pF to 1.2uF
- Operating Temperature : - 55°C, + 125°C
- Temperature Coefficient : ± 15% with 0Vdc applied

PDF 다운로드

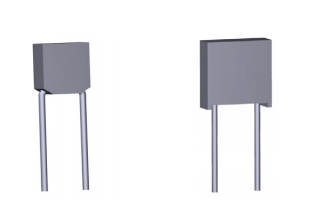

X7R Molded capacitors 63V-250V - X7R Molded
- 63V to 250V, 10pF to 1uF
- Operating Temperature : - 55°C, + 125°C
- Temperature Coefficient : ± 15% with 0Vdc applied

PDF 다운로드
X7R High Voltage Radial Capacitor (1kV-5kV) - X7R Dipped
- 1000V to 5000V, 1nF to 820nF
- Operating Temperature : - 55°C, + 125°C
- Temperature Coefficient : ± 15% with 0Vdc applied

PDF 다운로드

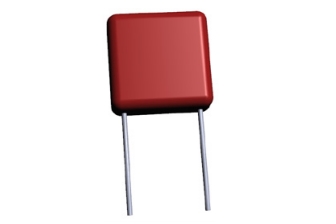

X7R High Voltage Molded capacitors 500V-2000V - X7R Molded
- 500V to 2000V, 150pF to 270nF
- Operating Temperature : - 55°C, + 125°C
- Temperature Coefficient : ± 15% with 0Vdc applied

PDF 다운로드
