Home 고전압 부품 > 고전압 저항 > HV Non-inductive Film Resistors

Power Resistors 상위메뉴

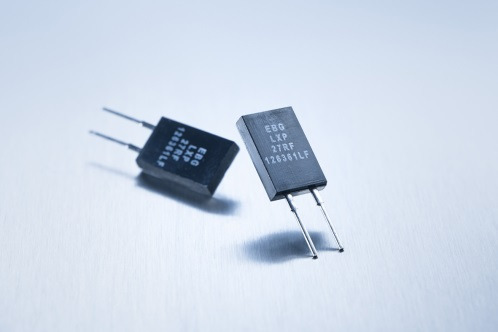

Series LXP 18 TO-220 - Power Non-Inductive Resistors
Resistance: 0.05Ω - 1MΩ
Tolerance : 0.5% - 10%
TCR : 50ppm/℃
Operating Power : up to 18W
PDF 다운로드
Series LXP 20 TO-220 - Power Non-Inductive Resistors
Resistance: 0.05Ω - 1MΩ
Tolerance : 0.5% - 10%
TCR : 50ppm/℃
Operating Power : up to 20W
PDF 다운로드

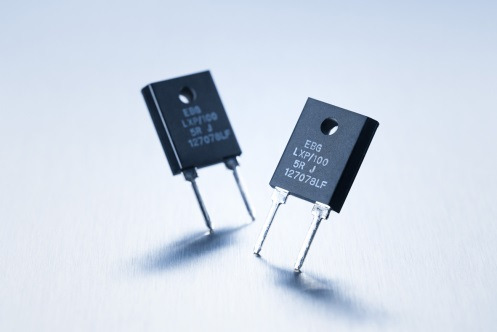

Series LXP 100 TO-247 - Power Non-Inductive Resistors
Resistance: 0.05Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 50ppm/℃
Operating Power : up to 100W
PDF 다운로드

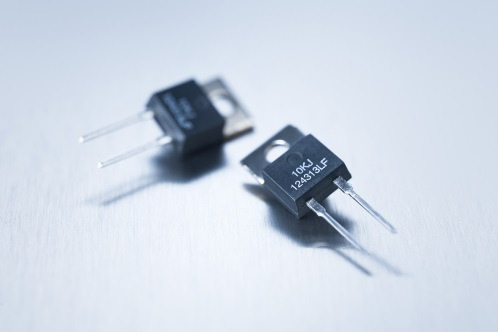

Series MXP 35 TO-220 - Power Non-Inductive Resistors
Resistance: 0.05Ω - 1MΩ
Tolerance : 0.5% - 10%
TCR : 50ppm/℃
Operating Power : up to 35W
PDF 다운로드

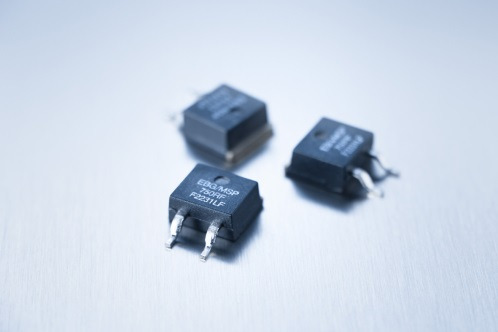

Series MSP 35 SMD TO-220 - Power Non-Inductive Resistors
esistance: 0.1Ω - 1MΩ
Tolerance : 0.5% - 10%
TCR : 50ppm/℃
Operating Power : up to 35W
PDF 다운로드
Series AXP 50 - Power Non-Inductive Resistors
Resistance: 1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 50-250ppm/℃
Operating Power : up to 50W
PDF 다운로드
Series AXP 100 - Power Non-Inductive Resistors
Resistance: 1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 50-250ppm/℃
Operating Power : up to 100W
PDF 다운로드
Series AXM - Power Non-Inductive Resistors
Resistance: 0.1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 250ppm/℃
Operating Power : up to 120W
PDF 다운로드

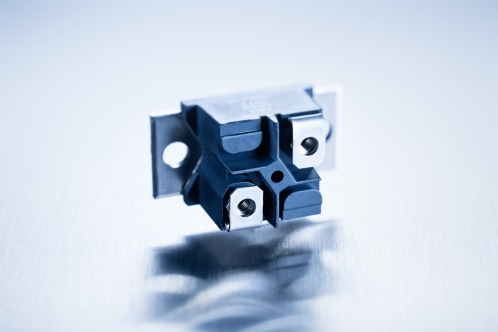

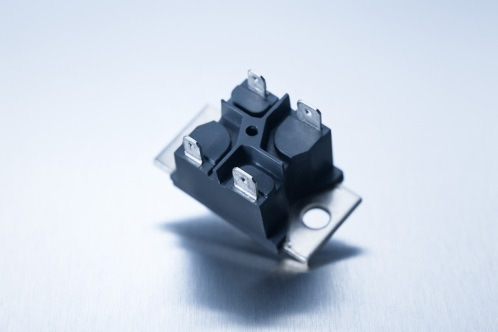

Series GXP 120, SOT-227 - Power Non-Inductive Resistors
Resistance: 0.1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 250ppm/℃
Operating Power : up to 120W
PDF 다운로드
Series HPP 150 - Power Non-Inductive Resistors
Resistance: 1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 250ppm/℃
Operating Power : up to 150W
PDF 다운로드

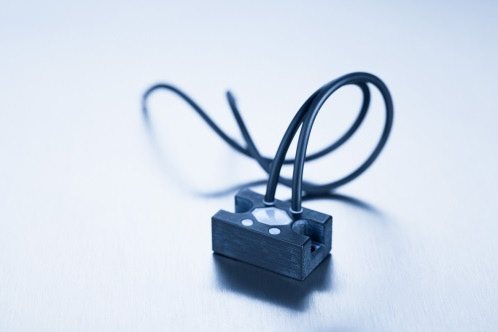

Series VHP - Power Non-Inductive Resistors
Resistance: 1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 250ppm/℃
Operating Power : up to 180W
PDF 다운로드

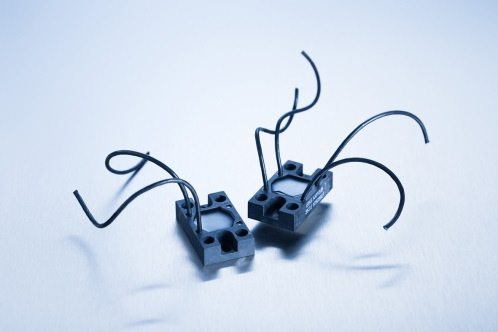

Series HPS 150 - Power Non-Inductive Resistors
Resistance: 1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 250ppm/℃
Operating Power : up to 150W
PDF 다운로드

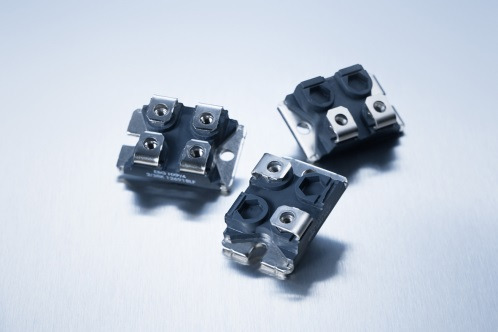

HXP 200, SOT-227 - Power Non-Inductive Resistors
Resistance: 0.1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 250ppm/℃
Operating Power : up to 200W
PDF 다운로드

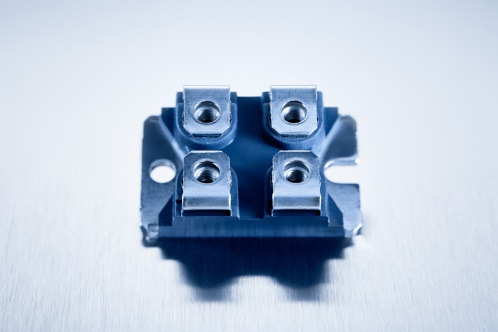

HXP 600, SOT-227 - Power Non-Inductive Resistors
Resistance: 0.15Ω - 5KΩ
Tolerance : 5% - 10%
TCR : 150ppm/℃
Operating Power : 1 x 600 W / 2 x 240 W / 3 x 135 W
PDF 다운로드
