고전압 부품

Home 고전압 부품 > 고전압 저항 > HV Non-inductive Film Resistors

High Voltage Resistors 상위메뉴

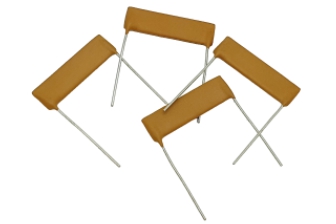

Series HVR - High Voltage Non-Inductive Resistors
Resistance: 10Ω - 500MΩ
Tolerance : 1.0% - 10%
TCR : 200ppm/℃ to 300ppm/℃
Operating Voltage: up to 35kV
PDF 다운로드
Series SGT LowTCR - High Voltage Non-Inductive resistors
Resistance: 100kΩ - 1GΩ
Tolerance : 0.1% - 1%
TCR : 25ppm/℃
Operating Voltage: up to 30kV
PDF 다운로드
Series SGP/OGP - High Voltage Non-Inductive resistors
Resistance: 100kΩ - 10GΩ
Tolerance : 0.1% - 10%
TCR : 80ppm/℃
Operating Voltage: up to 48kV
PDF 다운로드
Series SSP/OSP - High Voltage Non-Inductive resistors
Resistance: 0.1Ω - 30MΩ
Tolerance : 0.1% - 10%
TCR : 50ppm/℃
Operating Power : up to 40W
PDF 다운로드
Series OSX/SSX/SOX - High Voltage Non-Inductive resistors
Resistance: 300Ω - 10GΩ
Tolerance : 0.1% - 10%
TCR : 100ppm/℃
Operating Voltage: up to 60kV
PDF 다운로드
Series MTX 968 - High Voltage Non-Inductive resistors
Resistance: 400Ω - 30GΩ
Tolerance : 0.1% - 1%
TCR : 100ppm/℃
Operating Voltage: up to 54kV
PDF 다운로드
Series MTX 969 - High Voltage Non-Inductive resistors
Resistance: 80Ω - 2GΩ
Tolerance : 0.1% - 10%
TCR : 10-200ppm/℃
Operating Voltage: up to 54kV
PDF 다운로드
Series MTX 969W - High Voltage Non-Inductive resistors
Resistance: 0.5Ω - 10MΩ
Tolerance : 0.1% - 10%
TCR : 100ppm/℃
Operating Power : up to 1700W
PDF 다운로드
Series FSX, FEX, FBX - High Voltage Non-Inductive resistors
esistance: 200Ω - 2GΩ
Tolerance : 0.5% - 10%
TCR : 80ppm/℃
Operating Voltage: up to 24kV
PDF 다운로드
Series FPX, FLX - High Voltage Non-Inductive resistors
Resistance: 10Ω - 2GΩ
Tolerance : 0.5% - 10%
TCR : 100ppm/℃
Operating Voltage: up to 96kV
PDF 다운로드
Series MTX 967 - High Voltage Non-Inductive resistors
Resistance: 10Ω - 30GΩ
Tolerance : 0.1% - 1%
TCR : 10-200ppm/℃
Operating Voltage: up to 35kV
PDF 다운로드
