High Voltage Components > High Voltage Resistors > HV Non-inductive Film Resistors

High Voltage Resistors 상위메뉴

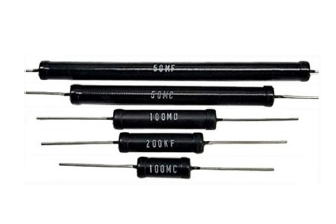

Series HVR - High Voltage Non-Inductive Resistors
Resistance: 10Ω - 500MΩ Tolerance : 1.0% - 10% TCR : 200ppm/℃ to 300ppm/℃ Operating Voltage: up to 35kV
Series SGT LowTCR - High Voltage Non-Inductive resistors
Resistance: 100kΩ - 1GΩ Tolerance : 0.1% - 1% TCR : 25ppm/℃ Operating Voltage: up to 30kV
Series SGP/OGP - High Voltage Non-Inductive resistors
Resistance: 100kΩ - 10GΩ Tolerance : 0.1% - 10% TCR : 80ppm/℃ Operating Voltage: up to 48kV
Series SSP/OSP - High Voltage Non-Inductive resistors
Resistance: 0.1Ω - 30MΩ Tolerance : 0.1% - 10% TCR : 50ppm/℃ Operating Power : up to 40W
Series OSX/SSX/SOX - High Voltage Non-Inductive resistors
Resistance: 300Ω - 10GΩ Tolerance : 0.1% - 10% TCR : 100ppm/℃ Operating Voltage: up to 60kV
Series MTX 968 - High Voltage Non-Inductive resistors
Resistance: 400Ω - 30GΩ Tolerance : 0.1% - 1% TCR : 100ppm/℃ Operating Voltage: up to 54kV
Series MTX 969 - High Voltage Non-Inductive resistors
Resistance: 80Ω - 2GΩ Tolerance : 0.1% - 10% TCR : 10-200ppm/℃ Operating Voltage: up to 54kV
Series MTX 969W - High Voltage Non-Inductive resistors
Resistance: 0.5Ω - 10MΩ Tolerance : 0.1% - 10% TCR : 100ppm/℃ Operating Power : up to 1700W
Series FSX, FEX, FBX - High Voltage Non-Inductive resistors
esistance: 200Ω - 2GΩ Tolerance : 0.5% - 10% TCR : 80ppm/℃ Operating Voltage: up to 24kV
Series FPX, FLX - High Voltage Non-Inductive resistors
Resistance: 10Ω - 2GΩ Tolerance : 0.5% - 10% TCR : 100ppm/℃ Operating Voltage: up to 96kV
Series MTX 967 - High Voltage Non-Inductive resistors
Resistance: 10Ω - 30GΩ Tolerance : 0.1% - 1% TCR : 10-200ppm/℃ Operating Voltage: up to 35kV

Power Resistors 상위메뉴

Series LXP 18 TO-220 - Power Non-Inductive Resistors
Resistance: 0.05Ω - 1MΩ Tolerance : 0.5% - 10% TCR : 50ppm/℃ Operating Power : up to 18W
Series LXP 20 TO-220 - Power Non-Inductive Resistors
Resistance: 0.05Ω - 1MΩ Tolerance : 0.5% - 10% TCR : 50ppm/℃ Operating Power : up to 20W
Series LXP 100 TO-247 - Power Non-Inductive Resistors
Resistance: 0.05Ω - 1MΩ Tolerance : 1% - 10% TCR : 50ppm/℃ Operating Power : up to 100W
Series MXP 35 TO-220 - Power Non-Inductive Resistors
Resistance: 0.05Ω - 1MΩ Tolerance : 0.5% - 10% TCR : 50ppm/℃ Operating Power : up to 35W
Series MSP 35 SMD TO-220 - Power Non-Inductive Resistors
esistance: 0.1Ω - 1MΩ Tolerance : 0.5% - 10% TCR : 50ppm/℃ Operating Power : up to 35W
Series AXP 50 - Power Non-Inductive Resistors
Resistance: 1Ω - 1MΩ Tolerance : 1% - 10% TCR : 50-250ppm/℃ Operating Power : up to 50W
Series AXP 100 - Power Non-Inductive Resistors
Resistance: 1Ω - 1MΩ Tolerance : 1% - 10% TCR : 50-250ppm/℃ Operating Power : up to 100W
Series AXM - Power Non-Inductive Resistors
Resistance: 0.1Ω - 1MΩ Tolerance : 1% - 10% TCR : 250ppm/℃ Operating Power : up to 120W
Series GXP 120, SOT-227 - Power Non-Inductive Resistors
Resistance: 0.1Ω - 1MΩ Tolerance : 1% - 10% TCR : 250ppm/℃ Operating Power : up to 120W
Series HPP 150 - Power Non-Inductive Resistors
Resistance: 1Ω - 1MΩ Tolerance : 1% - 10% TCR : 250ppm/℃ Operating Power : up to 150W
Series VHP - Power Non-Inductive Resistors
Resistance: 1Ω - 1MΩ Tolerance : 1% - 10% TCR : 250ppm/℃ Operating Power : up to 180W
Series HPS 150 - Power Non-Inductive Resistors
Resistance: 1Ω - 1MΩ Tolerance : 1% - 10% TCR : 250ppm/℃ Operating Power : up to 150W
HXP 200, SOT-227 - Power Non-Inductive Resistors
Resistance: 0.1Ω - 1MΩ Tolerance : 1% - 10% TCR : 250ppm/℃ Operating Power : up to 200W
HXP 600, SOT-227 - Power Non-Inductive Resistors
Resistance: 0.15Ω - 5KΩ Tolerance : 5% - 10% TCR : 150ppm/℃ Operating Power : 1 x 600 W / 2 x 240 W / 3 x 135 W

Ultra High Power Resistors 상위메뉴

Series MTX 969W - High Power Water Cooled Resistors
Resistance: 0.5Ω - 10MΩ Tolerance : 0.1% - 10% TCR : 100ppm/℃ Operating Power : up to 1700W
Series UXP 350 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.1Ω - 1MΩ Tolerance : 5% - 10% TCR : 150ppm/℃ Operating Power : up to 350W
Series UXP 600 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.1Ω - 1.5MΩ Tolerance : 5% - 10% TCR : 150ppm/℃ Operating Power : up to 600W
Series UXP 800 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.5Ω - 1MΩ Tolerance : 5% - 10% TCR : 150ppm/℃ Operating Power : up to 800W
Series UPT 400 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.5Ω - 1MΩ Tolerance : 5% - 10% TCR : 150ppm/℃ Operating Power : up to 400W
Series UPT 600 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.5Ω - 1MΩ Tolerance : 5% - 10% TCR : 150ppm/℃ Operating Power : up to 600W
Series UPT 800 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.5Ω - 1MΩ Tolerance : 5% - 10% TCR : 150ppm/℃ Operating Power : up to 800W
Series UXM 400 - Ultra High Power Non-Inductive Rsistors0
Resistance: 0.5Ω - 5Ω Tolerance : 5% - 10% TCR : 500ppm/℃ Operating Power : up to 400W
Series ULX 600 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.5Ω - 1MΩ Tolerance : 5% - 10% TCR : 150ppm/℃ Operating Power : up to 600W
Series ULX 800 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.1Ω - 1MΩ Tolerance : 5% - 10% TCR : 150ppm/℃ Operating Power : up to 800W

Voltage Divider 상위메뉴

Series MTX 2000 - Voltage Divider
Resistance: on request Tolerance : 0.1% - 1% TCR : 25-50ppm/℃ Operating Power : up to 50W
Series HVT - Flat Style, Precision Voltage Divider
Resistance: on request Tolerance : 0.1% - 1% TCR : 15-50ppm/℃ Operating Voltage : up to 32kV
Series MTX 1000 - Flat Style PrecisionVoltage Divider
Resistance: on request Tolerance : 0.1% - 1% TCR : 15-50ppm/℃ Operating Voltage : up to 32kV
Series 1776-x - Precision Decade Voltage Divider
Resistance: on request Tolerance : 0.1% - 0.5% TCR : 10-50ppm/℃

Shunts 상위메뉴

PCS - Precision Current Shunt Resistors
Resistance: 0.5mΩ - 1Ω Tolerance : 1% - 5% TCR : 60-500ppm/℃ Operating Power : up to 100W

Metal Film 상위메뉴

Series UPR/UPSC - Extremely Precise Metal Film
Resistance: 10Ω - 255kΩ Tolerance : 0.01% - 1% TCR : 3-15ppm/℃ Operating Voltage : up to 300V
Series NE/EE - Precision, Molded Style, Metal Film
Resistance: 0.025Ω - 15MΩ Tolerance : 0.02% - 5% TCR : 5-50ppm/℃ Operating Voltage : up to 350V

Custom Designed Resistors 상위메뉴

Custom-designed - Custom Designed Resistors
